Adapters & source types

An adapter is the piece of AgentData that knows how to talk to one kind of system: how to connect, how to list objects, how to profile a schema, and how to run a read query. Every source you register is backed by an adapter, and every adapter is read-only by default — it discovers metadata and returns query results, but never mutates your data unless you explicitly build a write flow.

Adapter categories

Source types are grouped into families. The family decides which adapter implements it and which engine runs its queries.

Category	What it is	Source types	Query engine
Relational	Transactional SQL databases	postgres, mysql, sqlserver, oracle, sqlite	Native (push-down SQL), or Trino when federated
Warehouse (multidimensional)	Cloud analytical warehouses	snowflake, redshift, synapse	Native, or Trino when federated
Lake	Object stores catalogued for query	s3 (+ AWS Glue), azure_blob	Athena
File stores	Flat files as a source or target	CSV on local disk, S3, GCS, Azure Blob	Read directly by flows
SaaS API	Business apps over REST	hubspot, hunter, apollo	Adapter fetch + Python aggregation
MCP-based	Any server that speaks the Model Context Protocol	e.g. HubSpot MCP	Adapter fetch (OAuth-authorised)
ERP	SAP business logic over RFC	sap_rfc	Adapter call (function module / BAPI)
Finance	Exchanges, brokers, wallets, open banking	ccxt, trading212, ibkr_flex, evm_wallet, solana_wallet, saltedge	Canonical holdings fetch
On-prem agent	A connector you install that reaches private systems	agent	Runs the above locally, in your network

You never pick a family directly — you pick a source type in Connectors → + Add source, and AgentData routes it to the right adapter and engine automatically.

Shipped vs. planned

Lake discovery (schema from the AWS Glue catalog) is available; lake query execution through Athena is being wired up and needs sources.engines.athena.s3_staging_dir set. Azure Blob listing is scaffolded. These are marked in the app.

Capabilities: read, execute, write

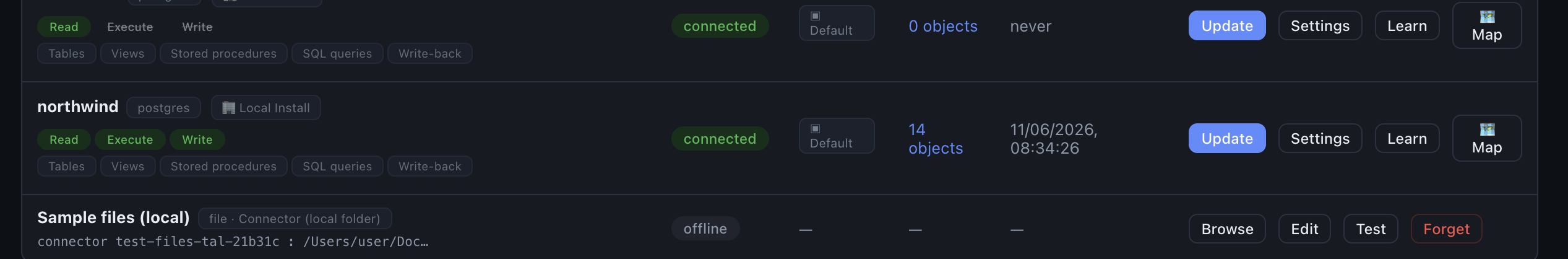

When AgentData connects with your credentials, it inspects what that credential is actually allowed to do and surfaces it as capability pills on the source:

• read — list objects, profile schemas, run SELECT. Always on for a working connection.
• execute — call stored procedures / functions (only if the DB user holds EXECUTE).
• write — insert/update/delete or write back to a SaaS object (only used by explicit write flows, never by querying).

The credential's real privileges are the safety gate: if the account can only SELECT, execute and write stay off no matter what the UI offers. Give AgentData a least-privilege, read-only login and it physically cannot do more.

Relational & warehouse adapters

These share one SQLAlchemy-based adapter. Connection strings are standard SQLAlchemy URLs; the connection form collects host/port/database/user/password (or, for Snowflake, account/warehouse/role). Discovery reads information_schema (or the vendor catalog), maps column types, samples values for pattern detection (email/uuid/phone/url → helps PII flagging), and computes table vitality. Queries are pushed down as native SQL in the source's own dialect.

SQLite is the one special case — it takes a file path rather than host/port.

curl -X POST https://agentdata.mdm.biskilled.com/api/sources \
  -H "Authorization: Bearer agentdata_sk_…" \
  -H "Content-Type: application/json" \
  -d '{"name":"warehouse","type":"snowflake",
       "conn_str":"snowflake://readonly@account/db/schema?warehouse=wh&role=ro"}'

SaaS API adapters — HubSpot, Hunter, Apollo

API sources don't have tables — they have objects. The adapter fetches records over REST, infers a flat schema from the fields returned, and runs any grouping/filtering in Python (there's no SQL push-down).

Adapter	Type	Objects	Auth	Capabilities
HubSpot	hubspot	contacts, companies, deals, tickets	Private-App token or OAuth 2.1 + PKCE (MCP)	read + write-back
Hunter.io	hunter	people (domain search)	API key	read
Apollo.io	apollo	people (domain search)	API key	read

• HubSpot discovers up to ~90 properties per object (priority fields like email, amount, createdate are always kept) and can authenticate two ways: paste a Private-App token, or run the OAuth 2.1 flow against HubSpot's MCP server.
• Hunter and Apollo are enrichment/prospecting sources: give them a company domain and they return the people found there. They're the engine behind the lead-enrichment use case. Their default domains are set per-adapter in Admin → Adapters.

Prospecting is governed

Prospecting sends company/domain names to a SaaS API and (for classification) to the LLM. A tenant's security policy can turn allow_prospecting off to block it entirely.

MCP-based adapters

Some sources are reached through a Model Context Protocol server rather than a bespoke REST client. AgentData stores the connection's auth_mode and an mcp_config blob (server URL, client id/secret, and encrypted OAuth tokens) on the source. Two auth modes exist:

• oauth_mcp — a full OAuth 2.1 + PKCE authorisation: you consent in the provider, AgentData exchanges the code for access + refresh tokens, stores them encrypted, and auto-refreshes them at query time. HubSpot supports this.
• api_key — the API key doubles as the bearer token (Hunter, Apollo), with an optional MCP server URL.

This is also how AgentData itself is exposed to MCP clients — see MCP server.

BI & reporting adapters — Power BI, Tableau, Qlik, OBIEE, Google Sheets, Metabase

BI connections are metadata connections: they import a tool's report definitions (not data) so every report field can be mapped onto the semantic model, and they receive reports composed in AgentData. Four tools import (Power BI, Tableau, Qlik, OBIEE — via metadata upload or a live API/SOAP connection) and two are publish-only targets (Google Sheets via a service-account key, Metabase via host + API key). Each is a normal self-contained adapter with its own skill file guiding the lineage mapper.

The whole workflow — importing, field-level lineage, composing and publishing — lives in Reporting & BI intelligence.

SAP R/3 adapter

The SAP adapter (sap_rfc) connects to SAP R/3 / S/4HANA over RFC — the ABAP Remote Function Call protocol. Instead of tables, SAP exposes function modules and BAPIs (callable business logic), plus table reads via the standard RFC_READ_TABLE.

• Discovery curates a set of function modules (e.g. BAPI_CUSTOMER_GETLIST, BAPI_MATERIAL_GETLIST, BAPI_SALESORDER_GETLIST). Each callable's IMPORT parameters — read via RFC_GET_FUNCTION_INTERFACE — become its "columns".
• Querying calls the function module with parameters and returns its first TABLE export as rows (or scalar exports as a single row).
• Capabilities are read + execute, write off by design (no BAPI_TRANSACTION_COMMIT).

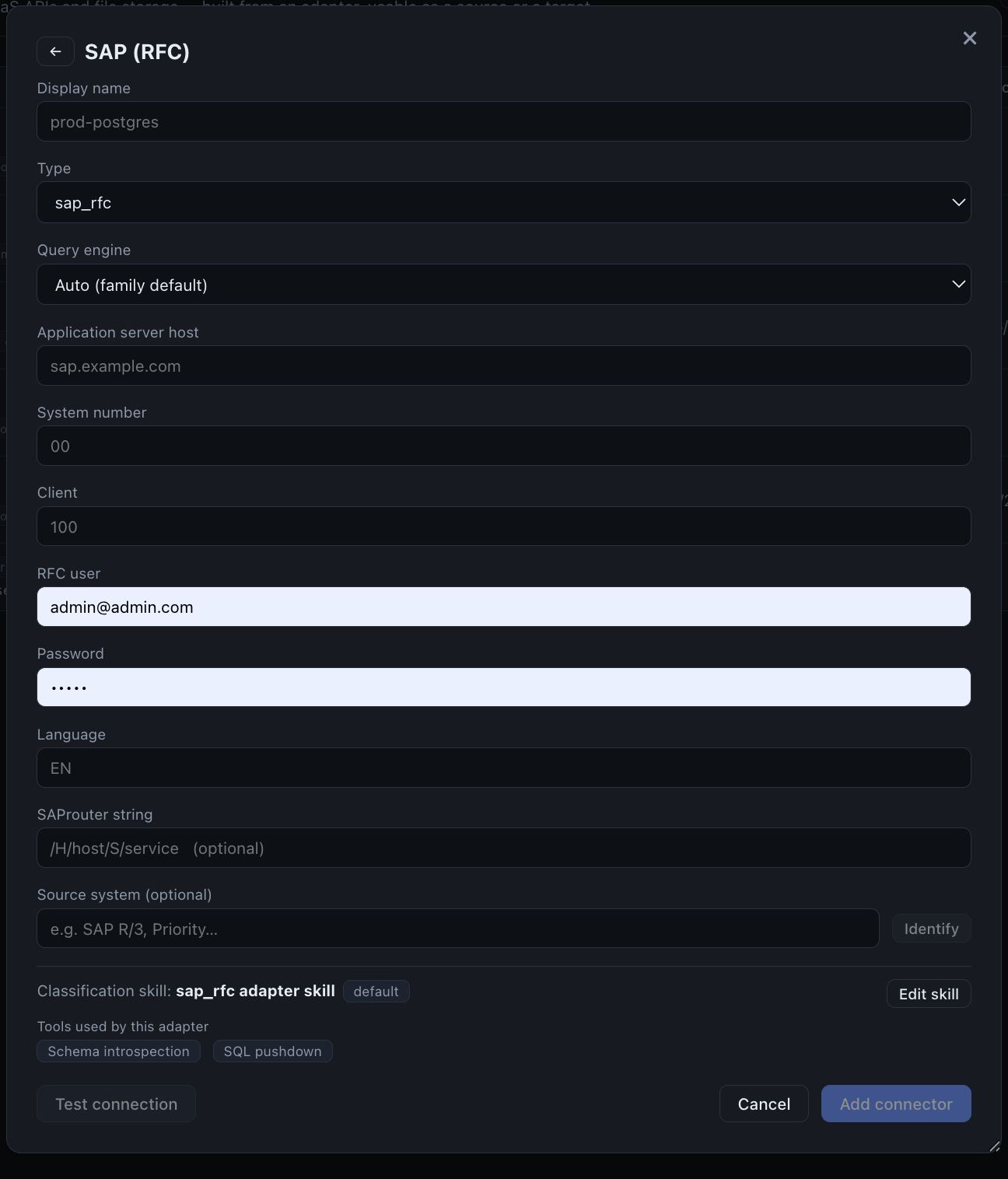

• Configuration is a small JSON connection: ashost, sysnr, client, user, passwd, lang, and optionally a saprouter string for firewalled systems.

Runtime requirement

SAP RFC needs SAP's licensed NW RFC SDK plus pyrfc, which only run on the on-prem connector. Your SAP credentials and traffic stay inside your network; only the query result leaves. See the replace-ETL-with-SAP use case.

Stored procedures

Relational stored procedures/functions and SAP function modules share one idea — callable objects:

1. Discovery finds them (relational adapters read information_schema.routines/parameters; SAP reads the RFC interface). Each becomes an object with object_type = procedure (or function), and its parameters become its schema.
2. Gating — the execute capability is the hard gate. If the credential lacks EXECUTE, the "run" action is disabled in the UI and refused by the backend.
3. Execution runs the procedure in a read-only transaction where the dialect allows, so an accidental write fails safely. The dialect determines the call form (CALL …, EXEC …, or SELECT * FROM func(…)).

This is exactly the pattern SAP reuses — a BAPI is just a callable object gated by the RFC user's SAP authorisations. Procedures can also be published as a governed Data API endpoint.

Finance adapters

The finance family connects to exchanges, brokers, wallets, and open-banking aggregators and normalises everything into one canonical holdings table: source · account · asset · asset_type · quantity · price · value · currency · as_of. It is strictly read-only (no trades/transfers), and it fails safely — a fetch it can't complete raises a clear error rather than inventing balances; a genuinely empty account returns an empty list.

Providers: ccxt (crypto exchanges), trading212, ibkr_flex (Interactive Brokers), evm_wallet/solana_wallet (on-chain balances), and saltedge (open banking).

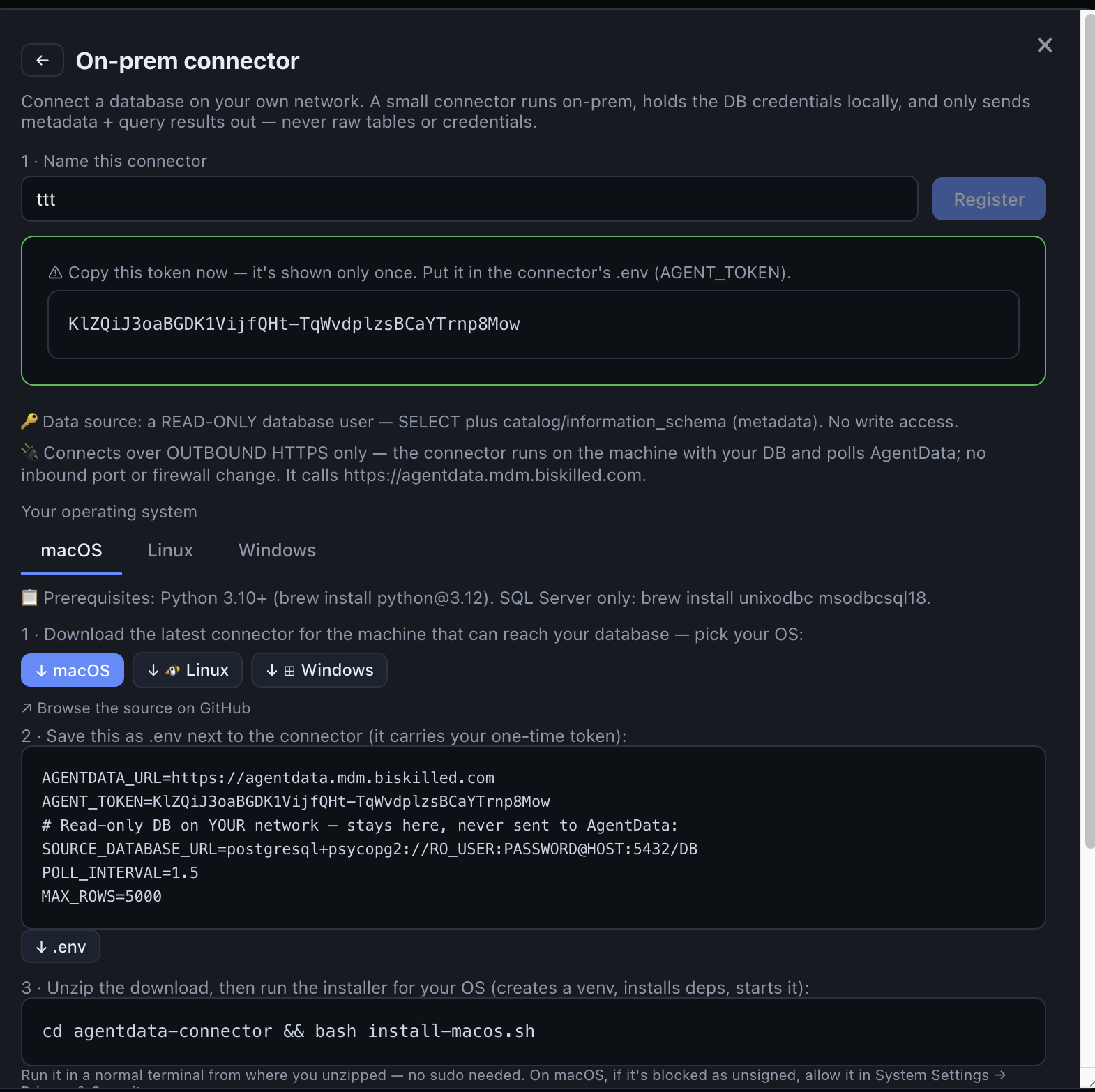

On-prem connector

For databases and files that must never be exposed to the internet, install the connector — a small app that runs inside your network and talks to AgentData outbound-only.

• No inbound port, no firewall change. The connector polls AgentData over outbound HTTPS and executes jobs locally.
• What leaves your network: schema metadata and query results only. Database credentials stay on-prem.
• A connector self-reports its engine (postgres/mysql/mssql/sqlite) and role — source (read your DBs), staging (host flow control tables + targets), or both — so the UI only offers connectors that fit.
• Register one in the admin area; you receive a token (shown once). Create a source of type agent and point it at the connector.

How an adapter is built (and extended)

Each adapter is self-contained under backend/adapters/<type>/:

• a class (connect · list objects · profile · run query · optional capabilities/call_routine/write_records),
• an adapter.yaml — shipped defaults: auth modes, API endpoints, discovery objects, MCP config,
• a skill.md — a short reference the classifier reads to interpret this system's objects and columns better (see classification skills).

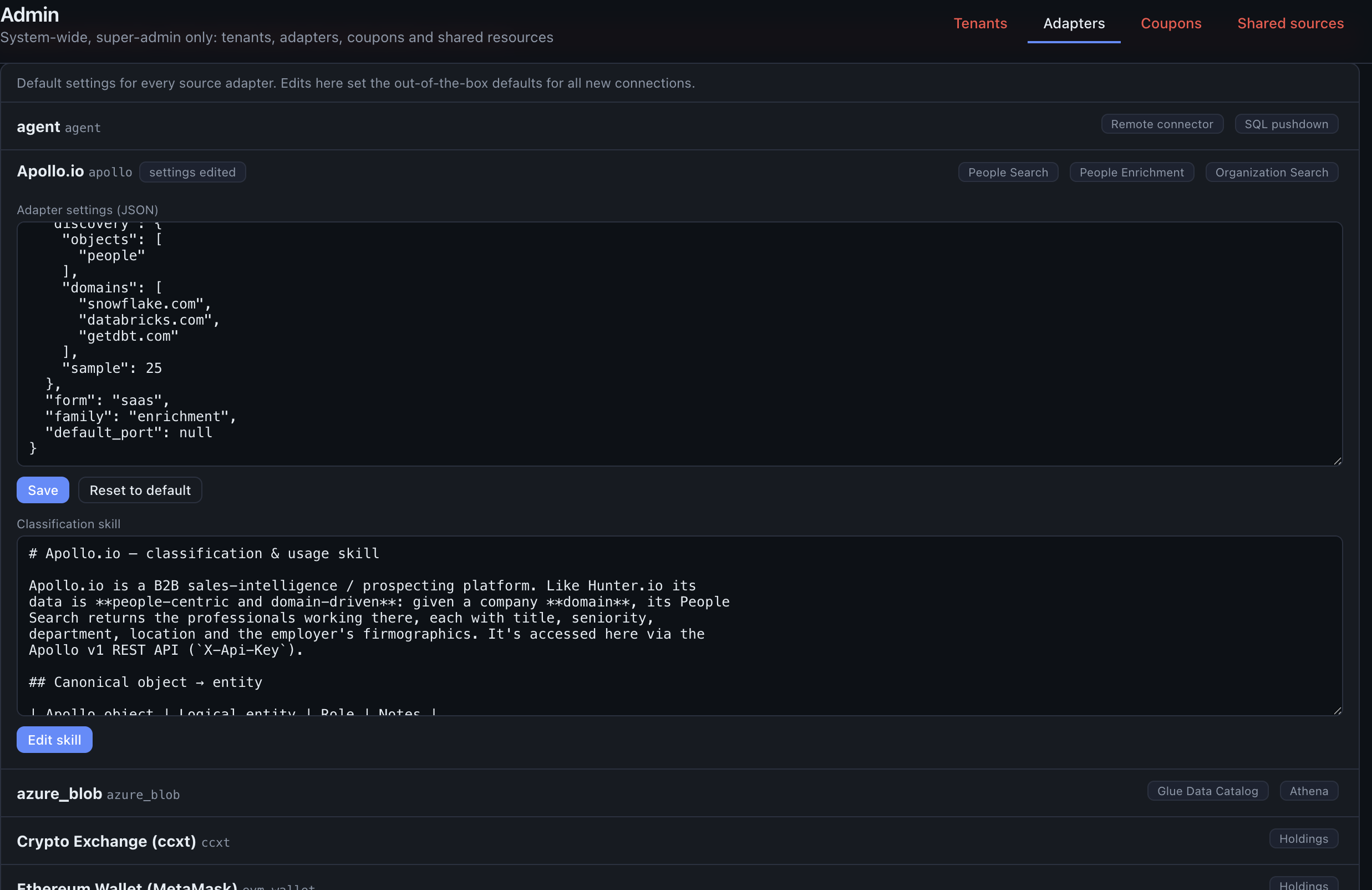

A super-admin can tune any adapter live from Admin → Adapters — edit its skill markdown or override settings (API base URL, discovery sample size, timeouts, MCP scopes). Overrides are stored in the registry (deep-merged over the shipped file) so they survive restarts and never put secrets in code.
